GUNNAR

UNLIMITED POSSIBILITIES ON TWO WHEELS

Like its brother Oscar, the two-wheeled cargo bike offers a variety of different body and engine options. Gunnar is a single-track cargo bike – only longer. It is extremely agile, flexible to use and fits through any aisle due to its narrow width.

Child transport

Load transport

RIDING EXPERIENCE

With his two wheels, Gunnar rides like a normal bike you are familiar with. It combines performance, efficiency and a great riding experience with environmentally friendly technology.

FLEXIBILITY

Gunnar offers you a variety of applications. Whether as a classical cargo bike for the transport of items or having your children in the box, Gunnar makes everything possible.

SAFETY

Top-notch quality and excellent components for the bike and options guarantee you maximum safety. Gunnar has been tested by a certified testing institute according to the current European standards.

EVERYTHING AT A GLANCE

Riding position

Quickly adjustable upright riding position
with low centre of gravity for intuitive handling and high safety.

1 of 7

Magnesium rims

Elegant and stylish 3-spoke magnesium rims equipped with high-quality hubs and integrated
hub gears if required.

2 of 7

Brake system

The hydraulic disc brake system guarantees high braking performance when loaded and unloaded.

3 of 7

Electric middle motor

Powerful middle motor systems from Brose guarantee reliability and low maintenance.

4 of 7

Battery

Easy to remove lithium battery. An additional battery can be carried in the frame.

5 of 7

Cargo space

The modular loading space system allows a variety of different transport solutions.

6 of 7

Lighting

The LED front headlight and the LED rear light with integrated reflector guarantee safe riding in poor conditions.

7 of 7

CARGO OPTIONS

CLICK ON THE ARROWS TO DISCOVER THE 3 CARGO OPTIONS FOR GUNNAR

PLATFORM
The basic platform consists of four stable multiplex panels, which are screwed securely to the Gunnar base frame. With the basic platform you can transport objects of different sizes, which can be secured with tension straps.
DISCOVER PLATFORM
VARIO TRANSPORT BASKET
The Vario transport basket provides space for many things of daily life. Stable side walls secure your items in the basket. In addition, up to two children can sit comfortably in the vehicle with the optional child seat extension secured with belts.
DISCOVER VARIO TRANSPORT BASKET
FLIGHTCASE
Made of solid, coated multiplex birch wood with riveted edges made of aluminium profiles and lockable butterfly latches, the flightcase is the ideal solution for heavy and sensitive loads. Due to its solid construction, the flightcase for Gunnar is particularly stable.
DISCOVER FLIGHTCASE
Previous
Next

OUR DRIVE

Brose is the fourth largest family-owned automotive supplier in the world. Brose also applies the high quality standards of the automotive industry to its eBike motors. Brose engineers have designed an innovative drive system for electric bicycles that has been in production in Berlin since 2014. The Johansson product family uses the proven and award-winning aluminium version from Brose. City, country or mountain? The Brose Drive product family offers the right whisper-quiet Brose drive for every driver and every requirement. The Brose Display Allround is the stylish all-in-one solution. All important functions are displayed on a 1.5 inch colour screen. The individual eBike components are of course perfectly matched to each other.

Noises? Airstream

The drives from the Brose Drive product family run extremely quietly and with low vibration. The carbon-reinforced toothed belt significantly reduces the noise generated by the drive and prevents vibrations from being transmitted to the pedals. You almost forget you’re riding an e-bike. Pure riding experience – without annoying noises.

The power you need

The use of highly sensitive sensor technology enables the drive power to be precisely dosed. If you step more, you get more support from the system. Brose is known for this particularly sensitive control system. Whether in demanding terrain, cruising through the city or on a tour across the countryside – Brose drives provide the optimum additional power and the necessary endurance for every area of application.

Perfect freewheeling

Brose has designed the drives in such a way that they are completely decoupled. This means that if the motor is switched off or the battery exhausted, the e-bike can be ridden like a normal bike without additional pedal resistance.

Scroll to Top

Gunnar Specsheet

Type EPAC / Pedelec cargo bike,
Frame GUNNAR aluminium frame. splitable
Frame size Universal
Fork / front axle SR Suntour Mobie Cargo Suspension Fork, 20", with through axle
Stem Zoom, Aluminium Ahead, 1 1/8", adjustable
Handlebar Zoom, City Comfort, 660 mm wide
Grips Ergonomic grips by Velo, bolted
Shifting Shimano Deore 10-speed derailleur   or   Enviolo Cargo gear hub
Pedals Aluminium, non-slip, ball-bearing
Brakes Front & rear: Tektro disc brake T530, hydraulic, 180 mm rotor
Motor & battery options Brose Drive C / T / S
Tires Schwalbe Big Ben, 20 x 2.15", reflex ,AV Valve
Wheels Johansson three-spoke magnesium wheel, 20"
Saddle Ergonomic saddle by Velo with handle
Seatpost Zoom Aluminium Patent seatpost with quick release
Kickstand Double-Leg-Centerstand, exta wide
Carrier Atranvelo AVS system carrier
Lightning Front: Sate Lite C1, LED with reflector, 25 lux
Rear: Sate Lite M2, LED with reflector
Color options RAL 9007 Graualuminium
Dimensions (without options) l 2550 x b 720 x h 1200 mm
Weight 45,2 kg
Max. payload Rider: 100 kg / Cargo: 60 kg
Max. total weight 206 kg

Brose Drive C

Motortype Brushless middle motor Gewicht
Weight 3.400 g
Nominal Voltage 36 V
Continues Rated Power 250W
Torque 50 Nm
Maximum support 280 %
Maximum support 25 km/h
Push assistance up to 5 km/h
Display Brose Display Allround; 1,5“-TFT-Color Display (240 x 240 px); 50 g; 44 mm x 37 mm x 50 mm
Carrierbattery Lithium battery with 40 cells (2,8 kg)
Capacity 36 V / 504 Wh
Charging time 2.5 hours / 4A – 7.5 hours / 2A (depending on charger and battery)
Highlights extremely quiet; no pedaling resistance when motor is switched off
Downtube battery Lithium battery with 50 cells (2,9 kg)
Capacity (nominal) 36 V / 522 W
Charging time 4 hours / 3A – 7.5 hours / 2A (depending on charger and battery

Brose Drive T

Motortype Brushless middle motor Gewicht
Weight 3.400 g
Nominal Voltage 36 V
Continues Rated Power 250W
Torque 70 Nm
Maximum support 320 %
Maximum support 25 km/h
Push assistance up to 5 km/h
Display Brose Display Allround; 1,5“-TFT-Color Display (240 x 240 px); 50 g; 44 mm x 37 mm x 50 mm
Carrierbattery Lithium battery with 40 cells (2,8 kg)
Capacity 36 V / 504 Wh
Charging time 2.5 hours / 4A – 7.5 hours / 2A (depending on charger and battery)
Highlights extremely quiet; no pedaling resistance when motor is switched off
Downtube battery Lithium battery with 50 cells (2,9 kg)
Capacity (nominal) 36 V / 522 W
Charging time 4 hours / 3A – 7.5 hours / 2A (depending on charger and battery

Brose Drive S

Motortype Brushless middle motor Gewicht
Weight 3.400 g
Nominal Voltage 36 V
Continues Rated Power 250W
Torque 90 Nm
Maximum support 410 %
Maximum support 25 km/h
Push assistance up to 5 km/h
Display Brose Display Allround; 1,5“-TFT-Color Display (240 x 240 px); 50 g; 44 mm x 37 mm x 50 mm
Carrierbattery Lithium battery with 40 cells (2,8 kg)
Capacity 36 V / 504 Wh
Charging time 2.5 hours / 4A – 7.5 hours / 2A (depending on charger and battery)
Highlights extremely quiet; no pedaling resistance when motor is switched off
Downtube battery Lithium battery with 50 cells (2,9 kg)
Capacity (nominal) 36 V / 522 W
Charging time 4 hours / 3A – 7.5 hours / 2A (depending on charger and battery

Sorry, the configurator still needs some time

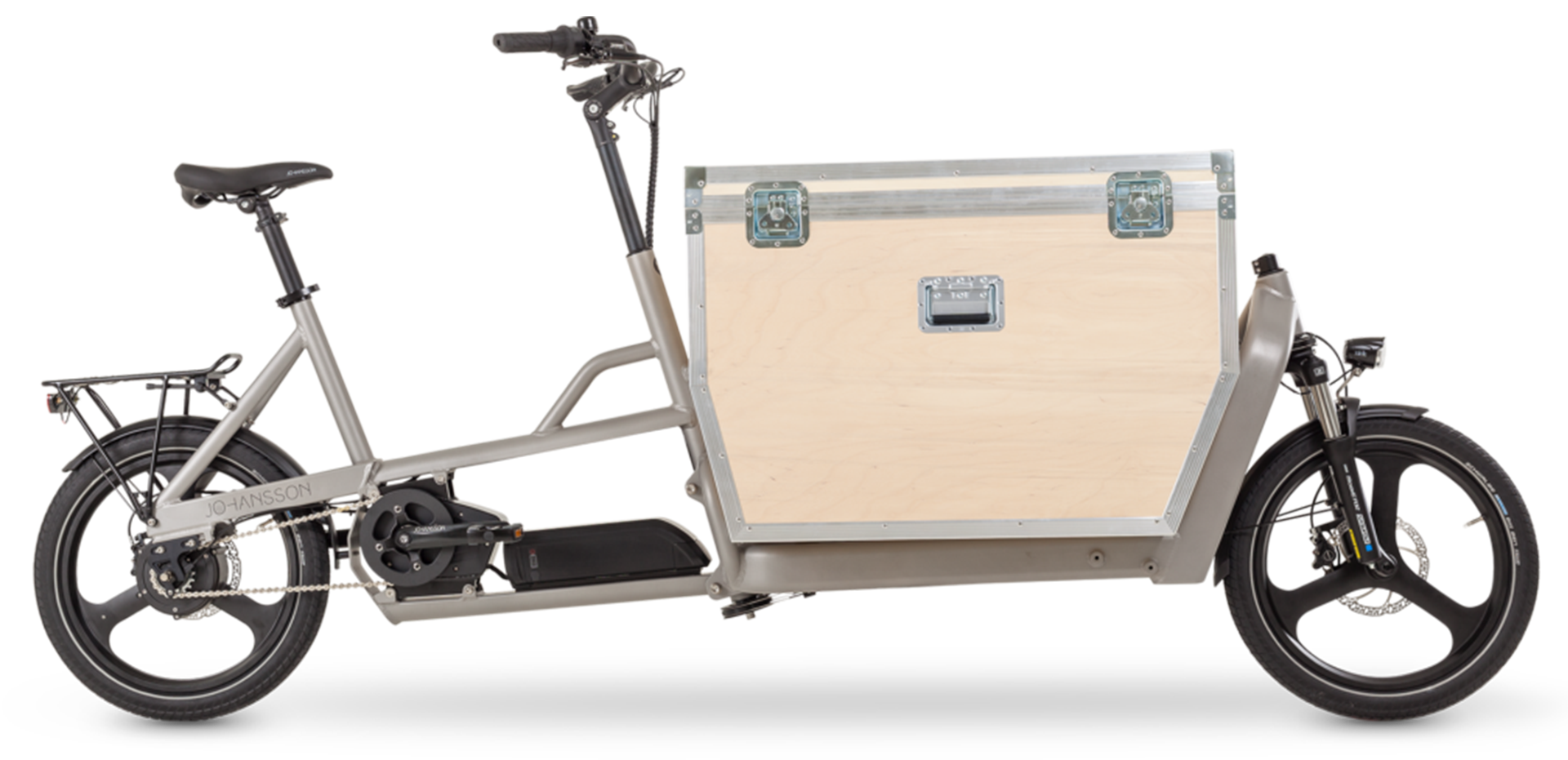

FLIGHTCASE

SAFETY – PROVEN A THOUSAND TIMES

Made of solid, coated multiplex birch wood with riveted edges made of aluminium profiles and lockable butterfly latches, the flightcase is the ideal solution for heavy and sensitive loads. Due to its solid construction, the flightcase for Gunnar is particularly stable.

Durability

Durability

Anti theft protection

The case can be secured with a padlock using the lockable butterfly latches.

Stability

Flightcases have have been widely used in the industry for many years. The solid construction gives you the greatest protection.

VARIO TRANSPORT BASKET

ENOUGH SPACE FOR EVERY DAY

Wonderful, wide landscapes with thousands of lakes and islands, endless coasts, deep forests and barren mountains coupled with a rich history and a diverse cultural life. This is Scandinavia – the home of Johansson. Our products combine minimalist nordic design with technical sophistication and top quality in harmony with nature. Let yourself be enchanted by the spirit of the north.

Flexibility

Our flexible and modular system enables you to quickly change different cargo options.

Stability

The stable construction of the Gunnar Vario transport basket allows you maximum load.

Child transport

With the optional child seat extension, the Vario transport basket turns into a comfortable and safe child seat for up to two children.

Durability

Multiplex birch wood sealed with multi-layer coating system for lasting outdoor durability.

Flexibility

Our flexible and modular system enables you to quickly change different cargo options.

Child transport

With the optional child seat extension, the Vario transport basket turns into a comfortable and safe child seat for up to two children.

Stability

The stable construction of the Gunnar Vario transport basket allows you maximum load.

Durability

Multiplex birch wood sealed with multi-layer coating system for lasting outdoor durability.

ACCESSORIES

Child seat extension

Converts the Vario transport basket into a comfortable seat for two children and enables the installation of safety belts and seat cushions.

Comfort seat cushion

The padded seat cushion is made of weatherproof material. It is prepared for the integration of the comfort seat belt set.

Comfort seat belt set for one child

The 3-point safety belt with padded shoulder straps can be opened conveniently and comfortably via the patented magnetic-mechanical buckle.

Adapter for baby car seat

Mounted inside the opened Vario Box the adapter allows the safe mounting ofdifferent baby car seats.

Rain cover

The rain cover can be pulled up in a few easy steps and reliably protects the closed Vario transport basket from rain.

Mounting frame

The solid stainless steel frame is needed for applying insects and rain protection options.

Insect / sun protection kit for mounting frame

The combined protection kit is simply pulled over the mounting frame and can be fixed with a rubber band.

Raincover for mounting frame

The raincover is simply pulled over the mounting frame and can be fixed with a rubber band.

Sun protection kit for mounting frame

The compact sun protection can be quickly mounted in various positions on the mounting frame.

Extension frame with side impact protection

The solid aluminium frame is attached to the base platform. It allows easy installation of up to two bike child seats or different Atranvelo system baskets using the AVS Newrack adapter.

PLATFORM

THE SOLID BASE FOR GUNNAR

The basic platform consists of four stable multiplex panels, which are screwed securely to the Gunnar base frame. With the basic platform you can transport objects of different sizes, which can be secured with tension straps.

Durability

Multiplex birch wood sealed with multi-layer coating system for lasting outdoor durability.

Flexibility

Our flexible and modular system enables you to quickly change different cargo options.

Stability

The stable construction of the Gunnar platform allows you maximum load.

ACCESSORIES

Extension frame with side impact protection

The solid aluminium frame is attached to the base platform. It allows easy installation of up to two bike child seats or different Atranvelo system baskets using the AVS Newrack adapter.
